Description

Born out of a passion for simple, modern design and natural materials, the EP02 Leather edge pulls with a matching painted wood core are available in black, taupe, or whiskey brown leather. The handles age, developing character and patina over time. The rich, natural materials of leather and brass are the heart of the collection.

All products are designed and crafted in Toronto.

Find other components in the Chapman & Bose collection here.

Specifications

L 50mm (2”) X D 40mm (1.6”) X H 15mm (0.6”), tab thickness 4-5mm (~.25”)
L 102mm (4”) X D 40mm (1.6”) X H 15mm (0.6”), tab thickness 4-5mm (~.25”)
L 152mm (6”) X D 40mm (1.6”) X H 15mm (0.6”), tab thickness 4-5mm (~.25”)
L 203 mm (8”) X D mm (1.6”) X H 15 mm (0.6”), tab thickness 4-5mm (~.25”)
L 254 mm (10”) X D mm (1.6”) X H 15 mm (0.6”), tab thickness 4-5mm (~.25”)

Pre-cut mounting holes and brass fixing screws included.

Notes:

• For best results, handles should first be installed with a standard #6 square head screw prior to installing the slotted screws provided.

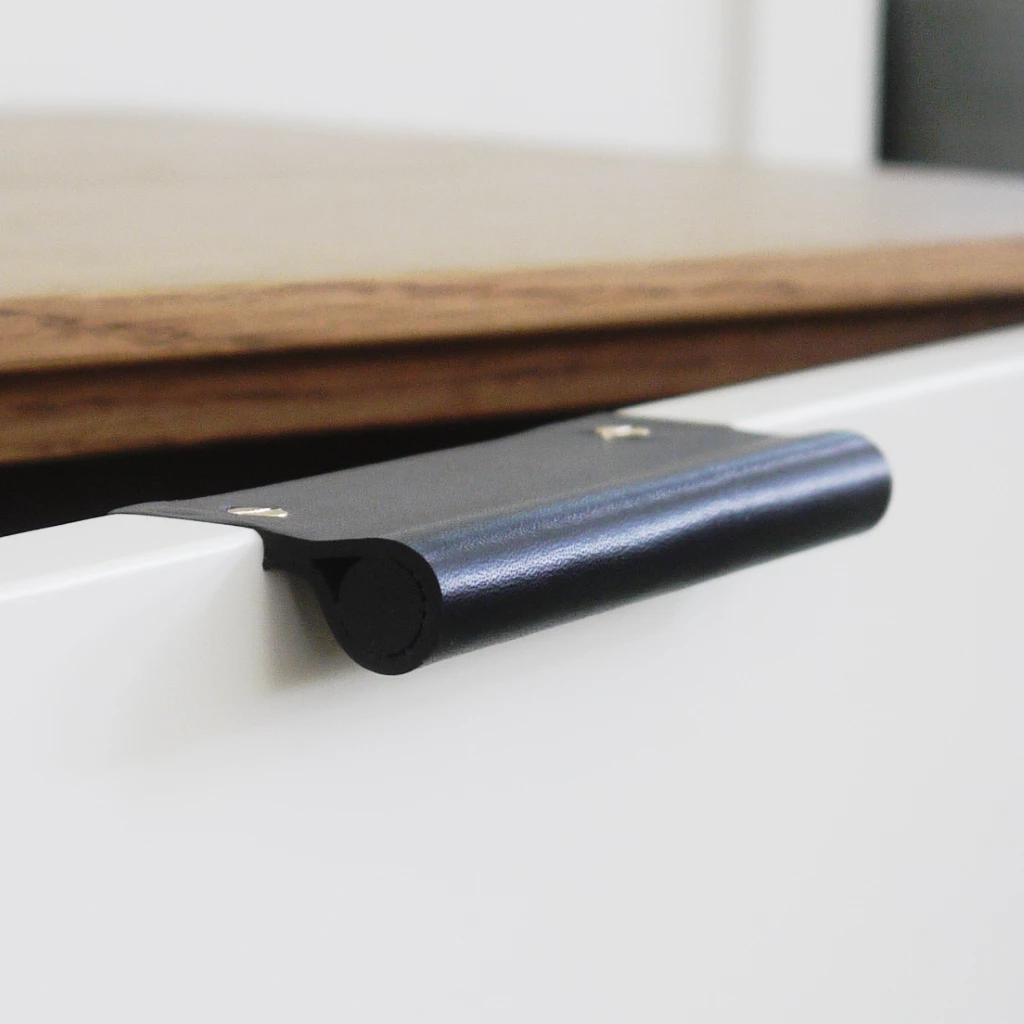

• Designed for installation in a recessed groove on 3/4″ thick doors or drawer fronts. Custom sizing available for other door thicknesses. Please contact us with any inquires about custom orders.
• We suggest cutting recessed grooves after receiving the product. As a natural material, leather thicknesses can vary slightly.
• Suitable for residential and commercial use. For commercial use please add Loctite or a similar thread locking adhesive to the barrel screws during installation.

Material(s)

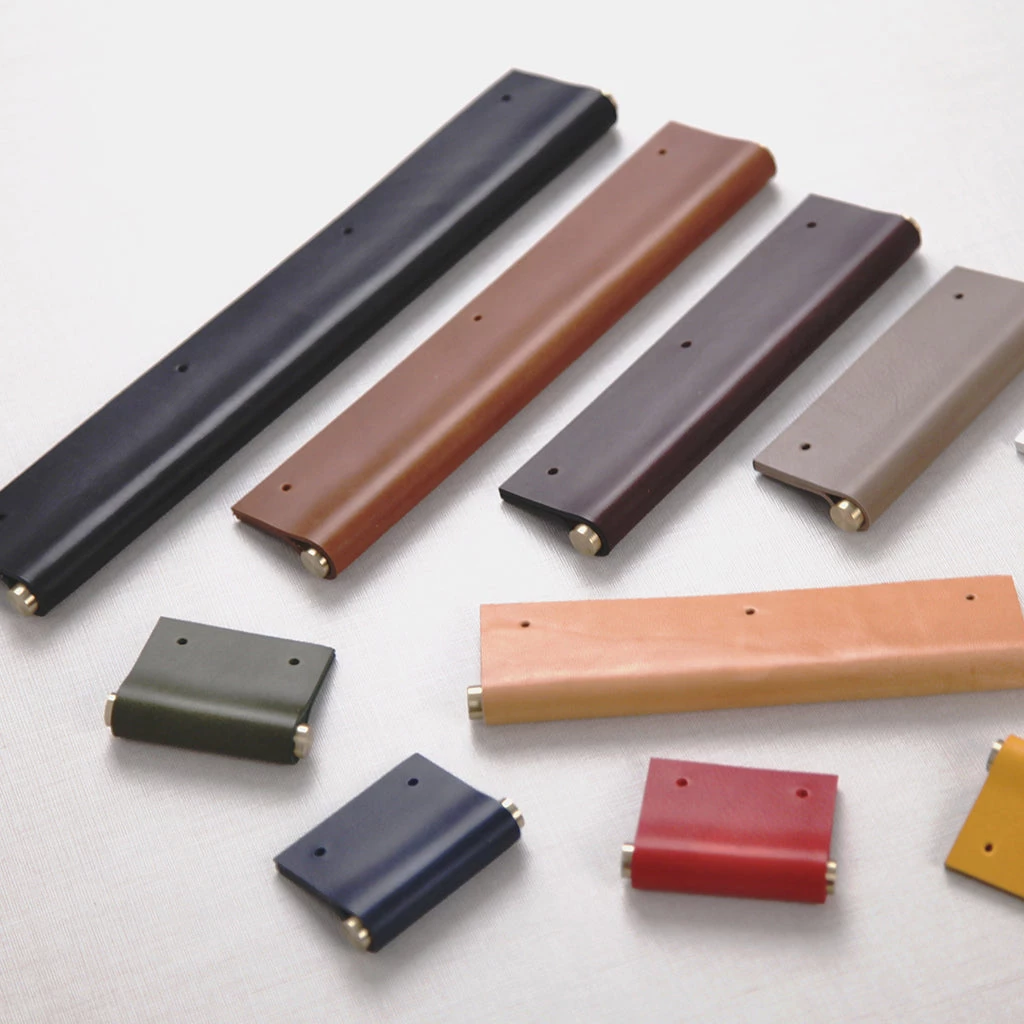

Top grain leather, available in 6 colours:

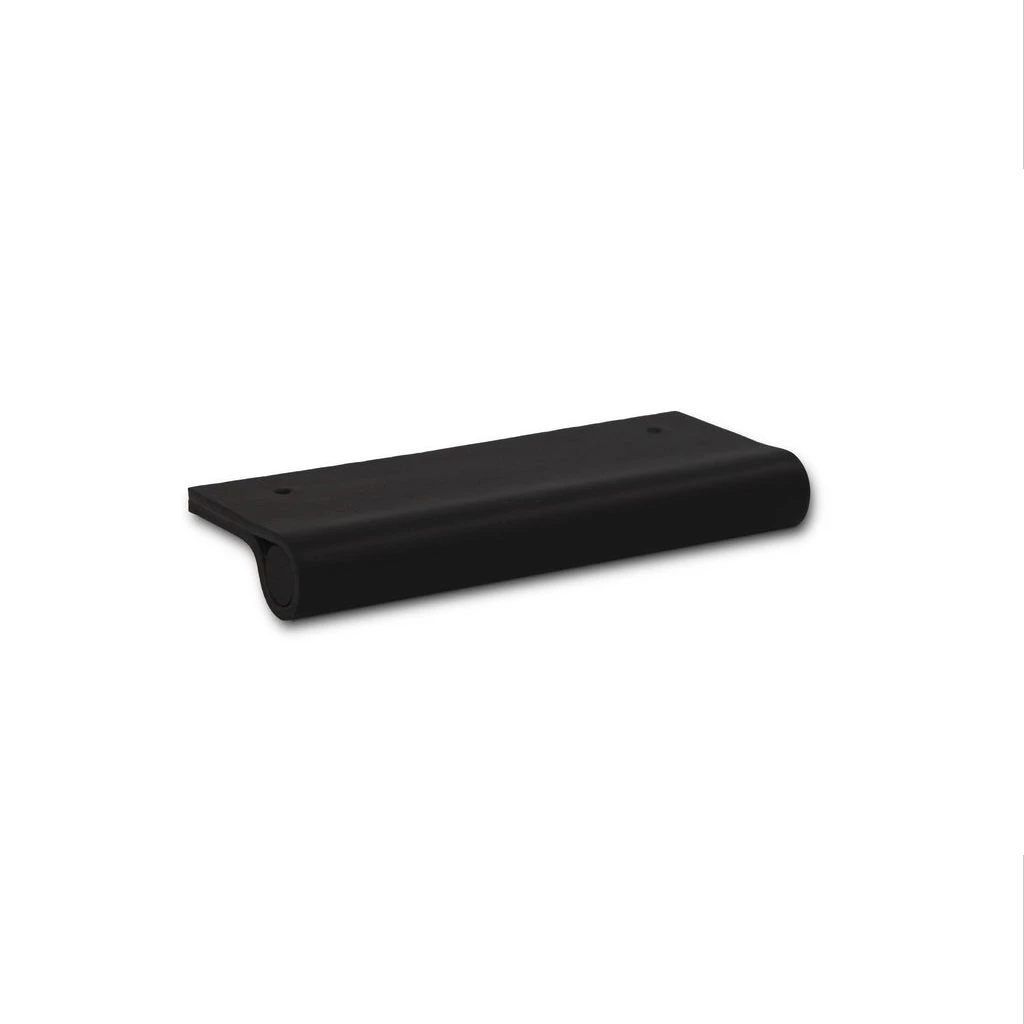

• Black
• Taupe

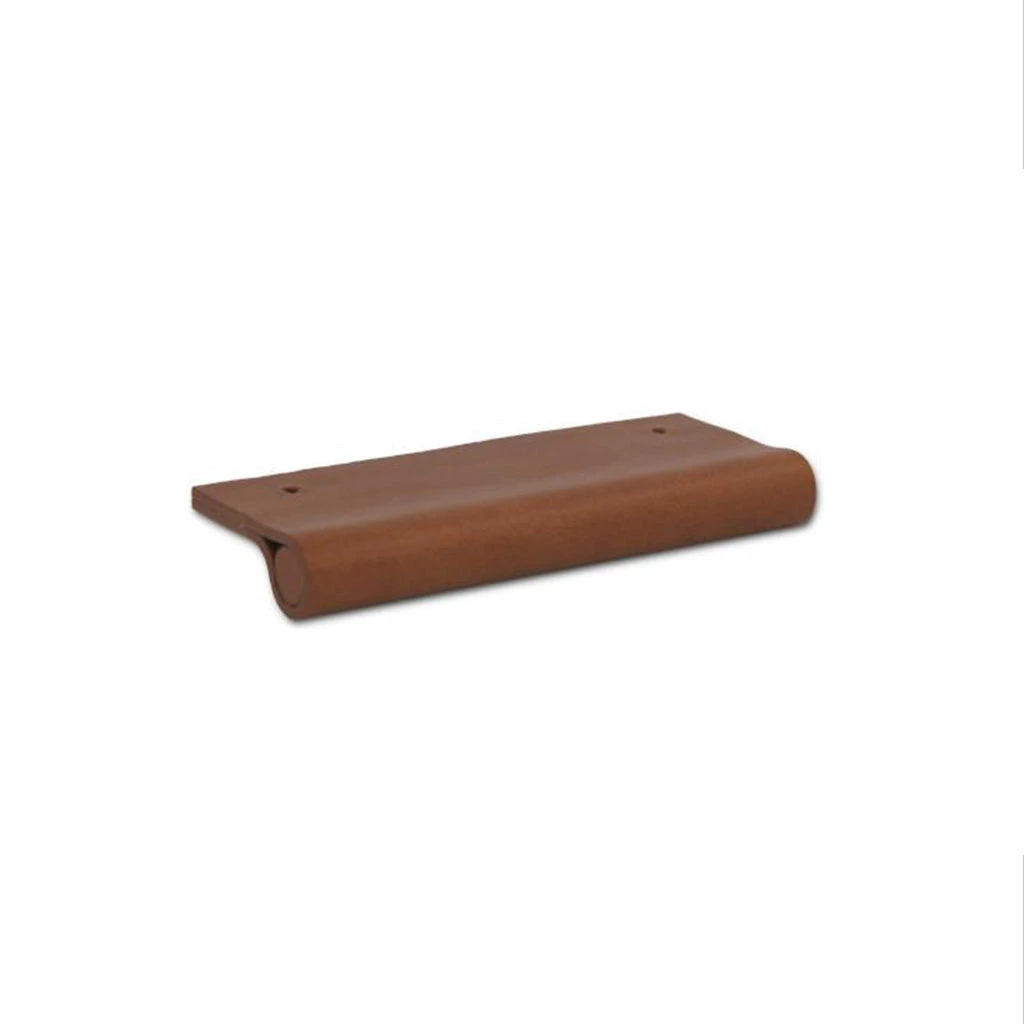

• Whiskey Brown

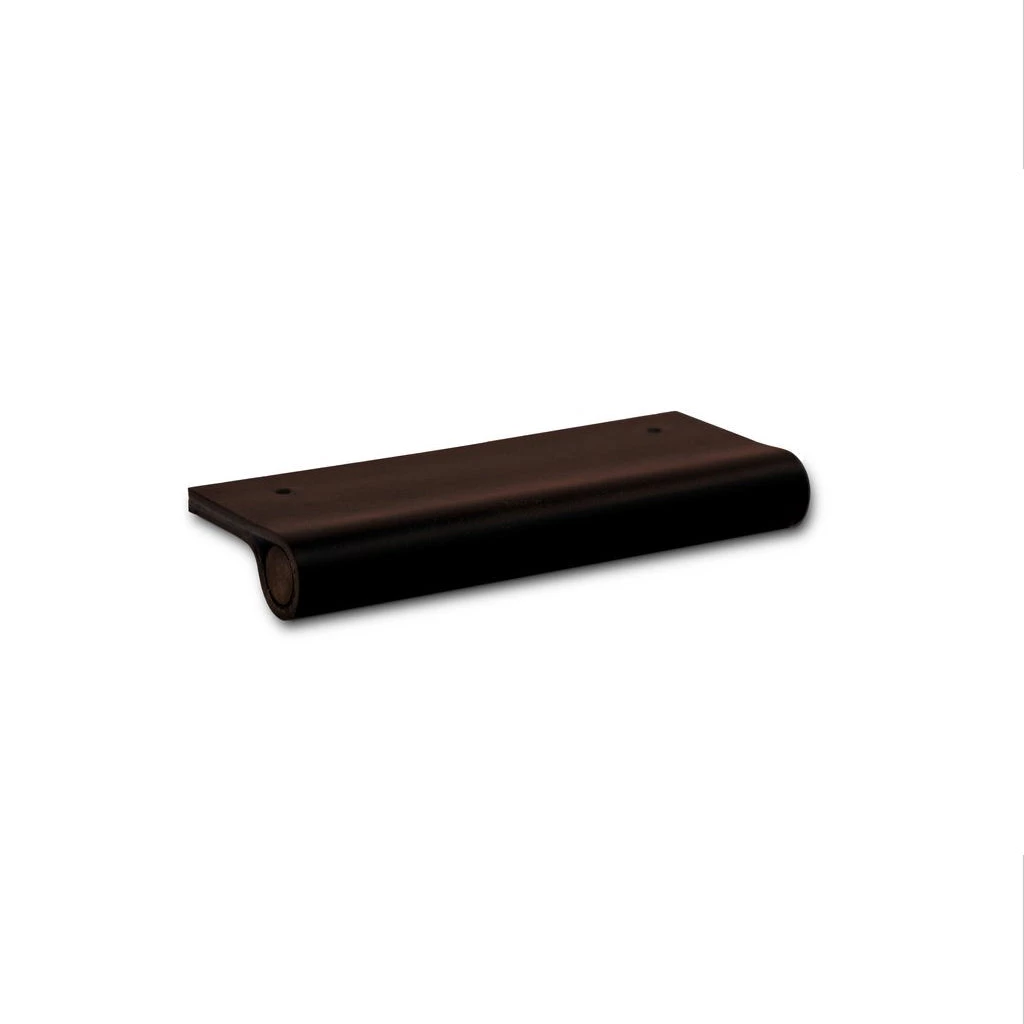

• Chocolate Brown

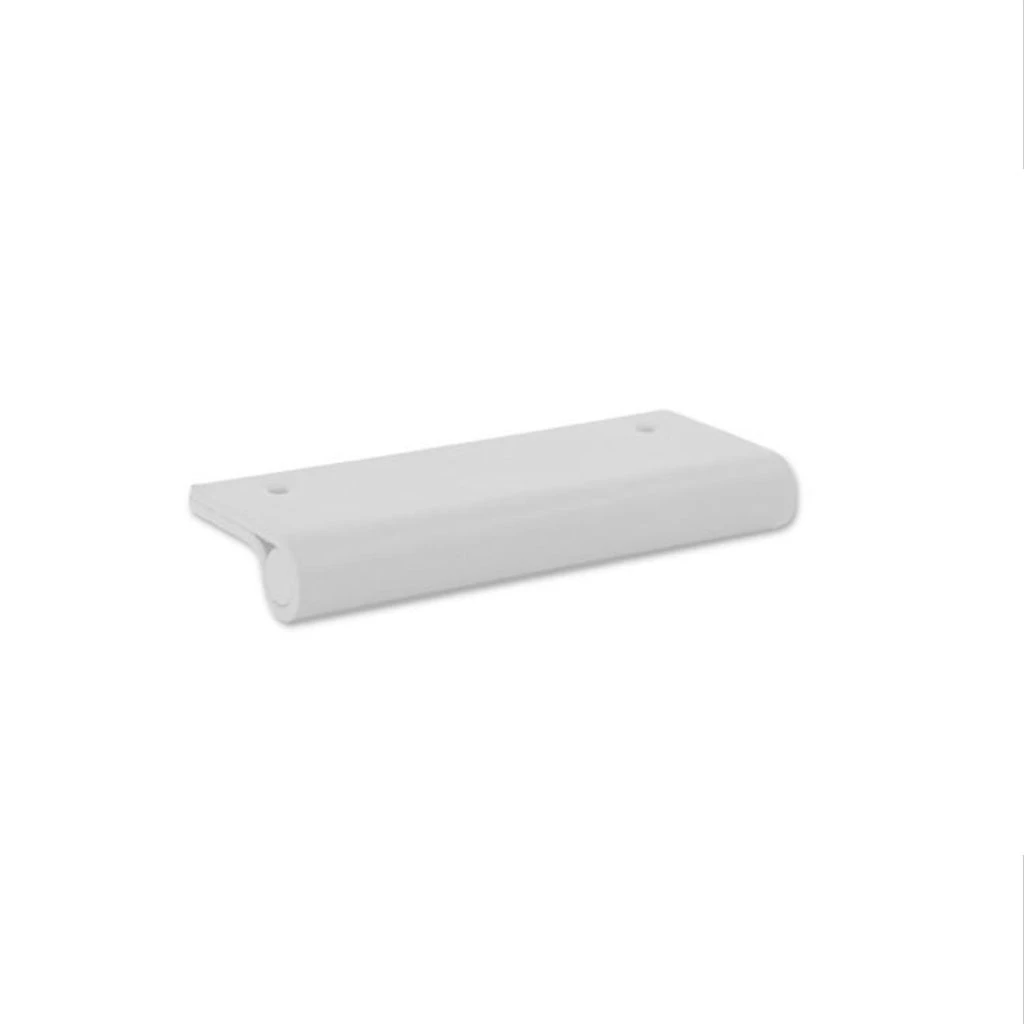

• White

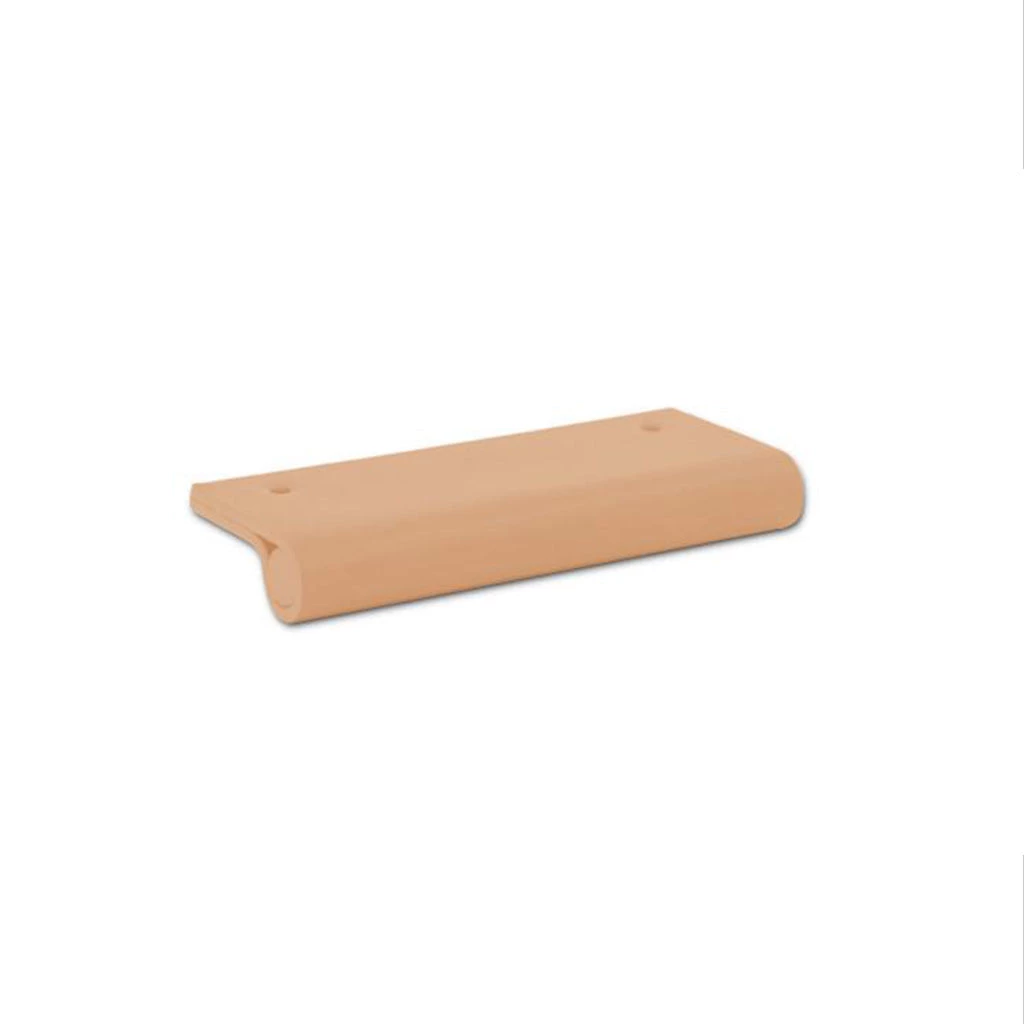

• Natural

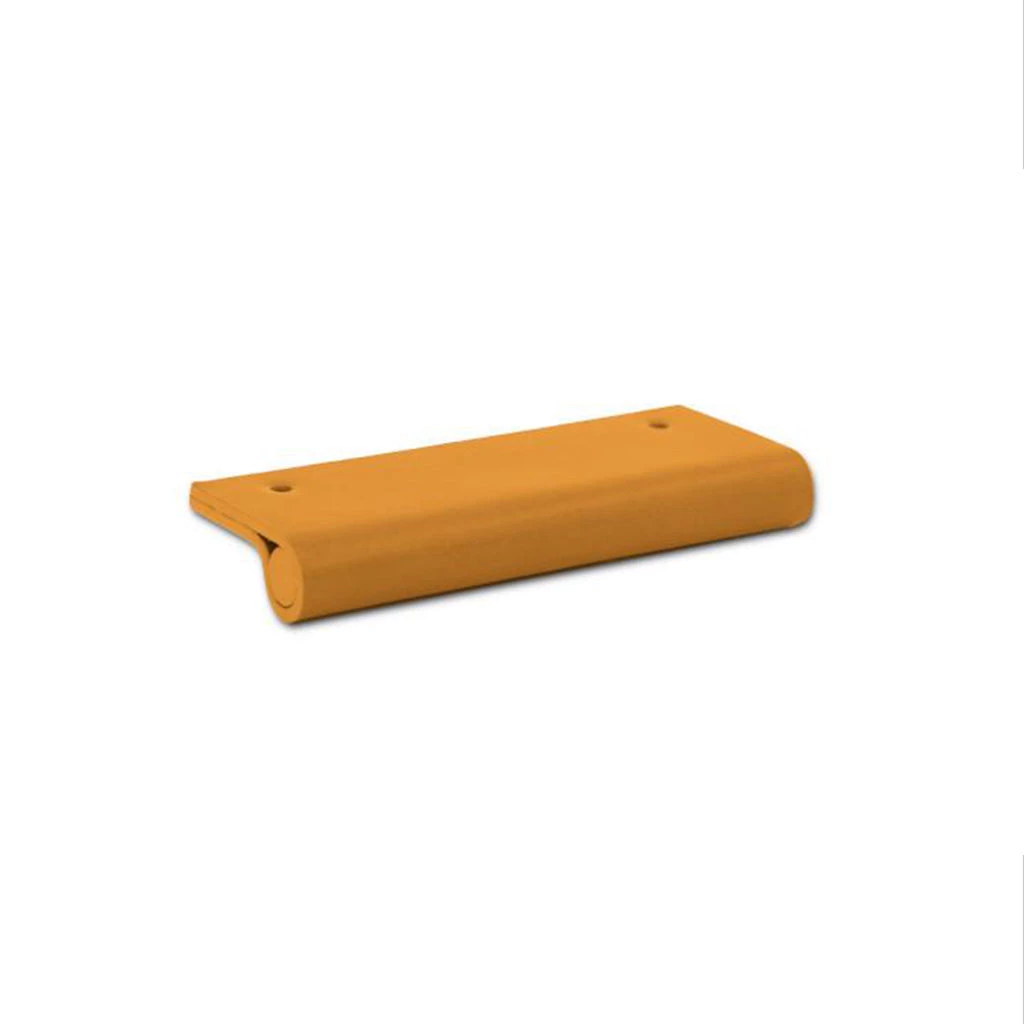

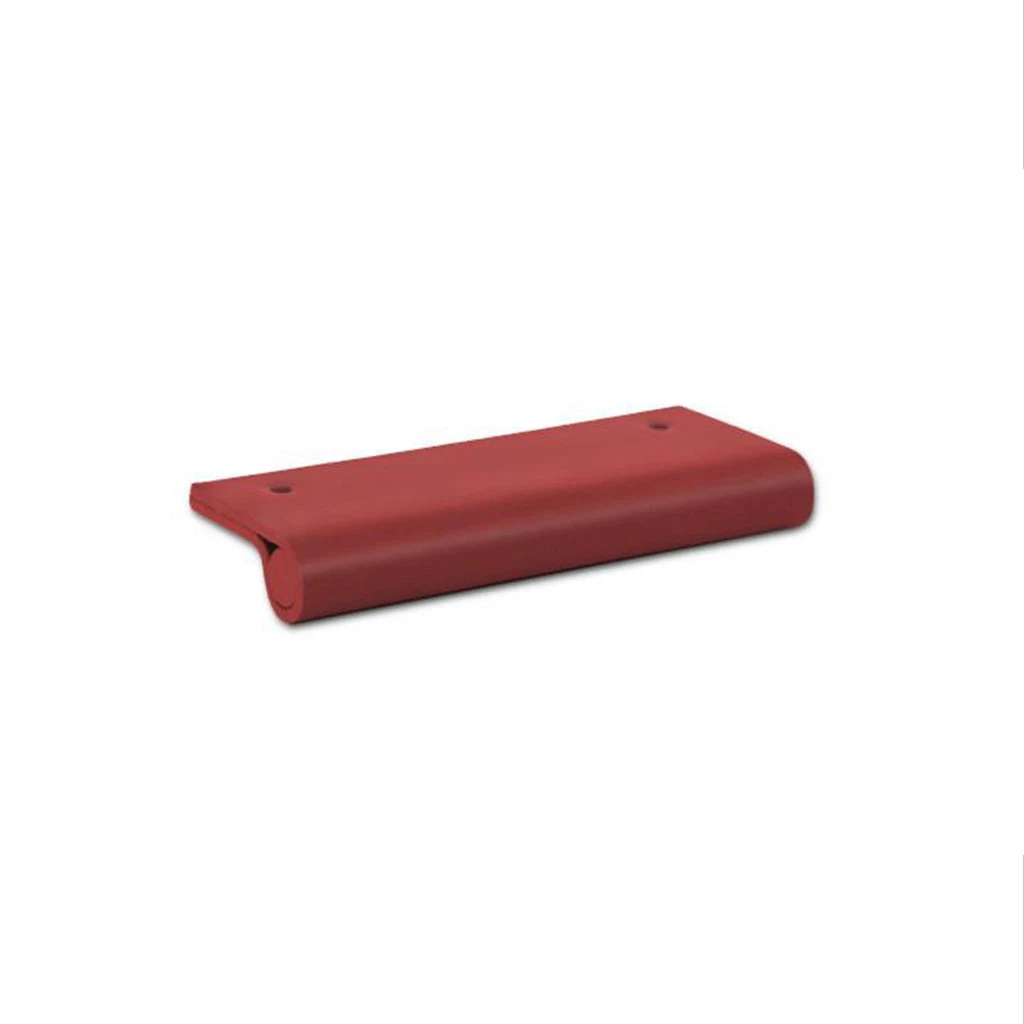

Special order available for Olive, Green, Blue, Red, and Yellow finishes. Please contact us for more information.

Painted wood core to match

Product Downloads

EP02 Leather Pull Cut Sheet
