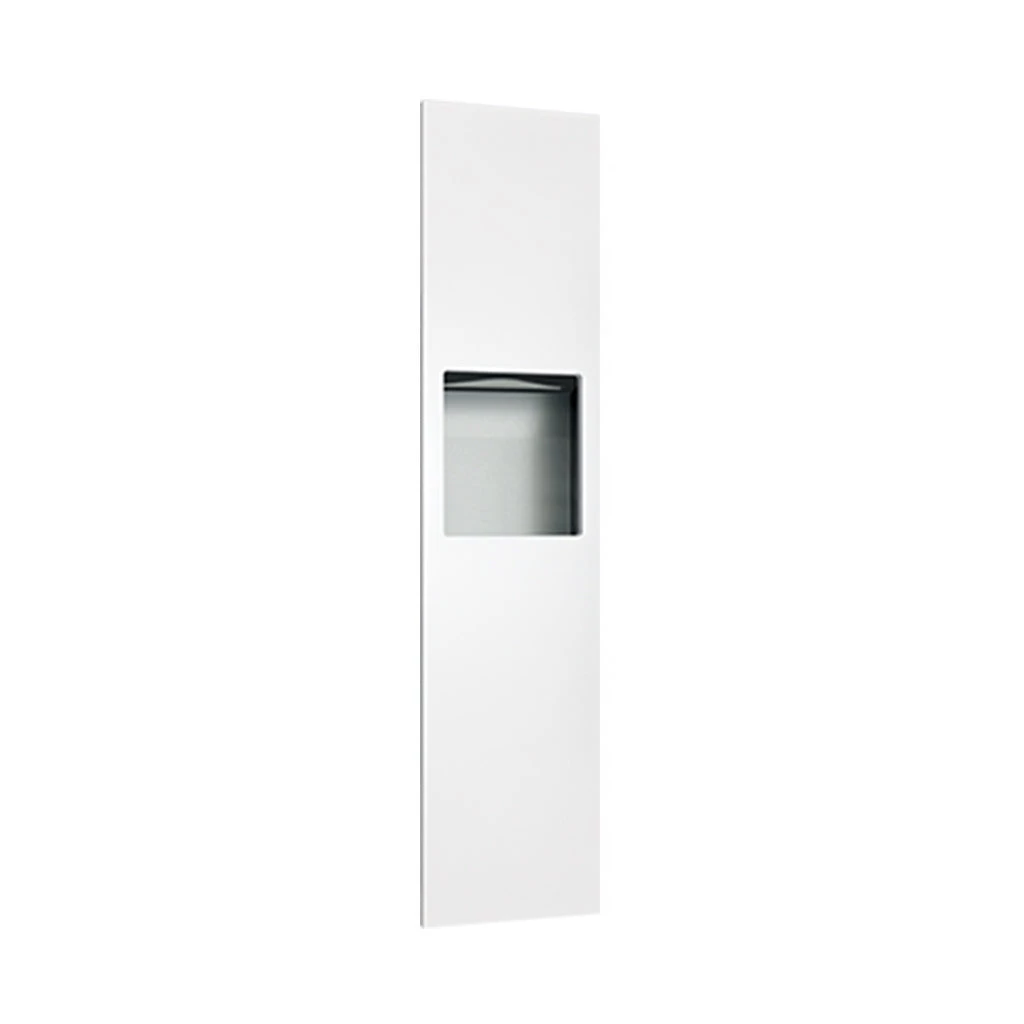

American Specialties Sanitary ASI Piatto 10-6467-41 Recessed Towel Dispenser & Waste Bin

Description

This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Dispenses 600 C-fold or 800 multi-fold paper towels. Paper towels are manually withdrawn through dispensing slot. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit. 4.2 gal. (16 L) stainless steel waste receptacle has a rolled edge finger hole for easy servicing.

Made in the USA.

Specifications

Finished Wall Opening (FWO):
W 332 mm (13-1/16″) X H 1399 mm (55-1/16″) X 119 mm (4-11/16″)

Unit Size:
W 330 mm (13″) X H 1397 mm (55″) X D 116 mm (4-9/16″)

Areas of application: Commercial

Material(s)

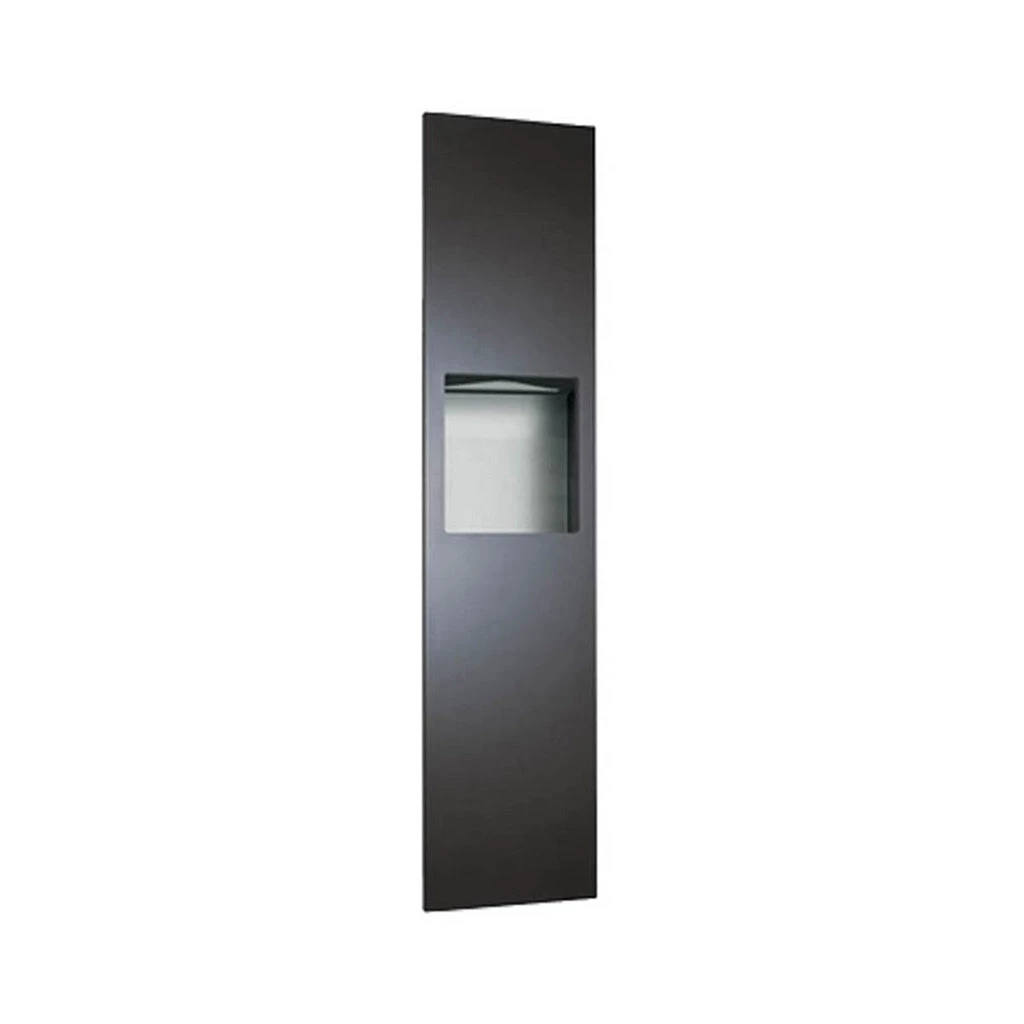

Stainless Steel with optional phenolic cover plate in black and white.

Lead Time

3-4 week lead time. Please contact us for more information or for stock availability.

Product Downloads

ASI 6467 Paper Towel Dispenser Product Sheet
ASI 6467 Paper Towel Dispenser Installation Guide
ASI Product Care
